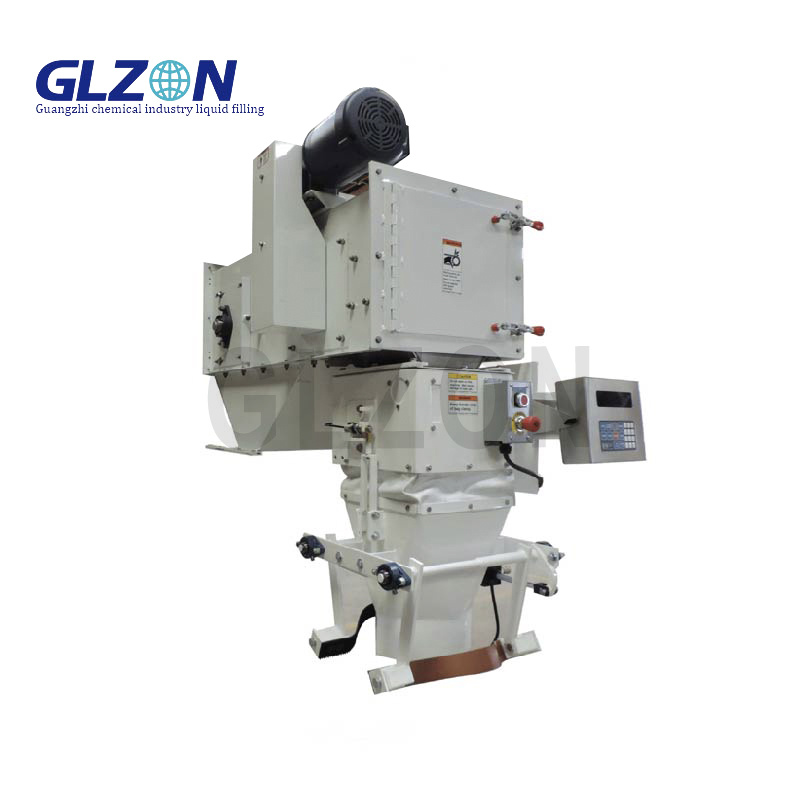

Nitrogen Vacuum Packaging Machine for Coating Powder

Product Overview: Combustible Powder Safety Solution

Shanghai Guangzhi Automation's Nitrogen Vacuum Packaging Machine revolutionizes the packaging of flammable coating powders (epoxy, polyester, acrylic). Engineered with ATEX Zone 21 certification, it achieves O₂ ≤0.1% and -0.95bar vacuum in sealed bags/kegs, eliminating explosion risks while extending shelf life by 300%.

Core Explosion-Proof Technology

1. Triple Safety Barrier

• Nitrogen Purging: 3-stage gas displacement (O₂ reduction from 21% → 0.1%)

• Vacuum Sealinge777乐彩线路检测: -0.95bar chamber pressure removes residual oxygen

• Static Control: Conductive film handling + ionized air curtain (10⁴ Ω resistance)

2. ATEX-Certified Components

• e777乐彩线路检测Explosion-proof servo motors (Ex d IIC T4)

• e777乐彩线路检测Intrinsically safe HMI (24VDC operation)

• e777乐彩线路检测Pressurized control cabinet (IP66)

3. Precision Powder Handling

• e777乐彩线路检测Loss-in-Weight Filling: ±0.2% accuracy for 1-25kg bags

• Anti-Caking System: Ultrasonic vibrators prevent bridging in hopper

Technical Specifications

Filling Range: 1kg–25kg (adjustable)
Bag Types: 4-layer AL/PE laminate pouches, FIBC bulk bags
Gas Flushing:

• N₂ Purity: ≥99.999%

• Residual O₂: ≤0.1%
  Vacuum Level: -0.95bar (adjustable)
  Speed: 15–25 bags/min
  Power: 380V/50Hz, 7.5kW
  Explosion Rating: ATEX II 2D Ex tb IIIC T135°C Db
  Dust Emissione777乐彩线路检测: ≤1mg/m³ (ISO 8573-1)

Industry-Specific Innovations

Safety & Compliance

• ATEX Directive 2014/34/EU: Zone 21 combustible dust

• NFPA 652 Compliance: Dust hazard analysis (DHA)

• Material Traceability: RFID-tagged contact parts

• Emergency Protocols:

• Auto N₂ flood on temperature spike

• Pressure relief vents (≤0.2 bar)

Case Study: Automotive Coating Producer

Challenge:

• 8% product degradation in 6 months

• Electrostatic sparks during packaging
  Solution:

• ATEX vacuum line with dual N₂/vacuum sealing
  Results:

• Zero oxidation after 18 months

• 100% static elimination

• ROI in 11 months

Global Certifications & Support

Standards Compliance:

• ATEX II 2D/II 3D

• e777乐彩线路检测IECEx IEC 60079-31

• PED 2014/68/EU

• e777乐彩线路检测ISO 80079-36

Smart Maintenance:

• IIoT Predictive Alerts: Real-time monitoring of:

• N₂ purity

• Seal integrity

• Static charge buildup

• AR Remote Assistancee777乐彩线路检测: Guided troubleshooting via HoloLens

Critical Spare Parts:

• Explosion-proof augers

• e777乐彩线路检测Conductive sealing jaws

• ATEX-rated sensors
  Global delivery ≤72h from Shanghai/Duisburg/Chicago warehouses

APPLICABLE BARREL TYPE

COMPANY PROFILE

e777乐彩线路检测Shanghai Guangzhi Automation Equipment Co., Ltd. is a production and trading company specializing in the weighing industry. We are located in Shanghai, China's economic city, with convenient transportation and export ports all over the world. We cooperate with state-owned factories and international companies, and the quality is guaranteed.

We mainly focus on providing customers with weighing solutions, from commercial scales to industrial weighing machines. Such as pneumatic valve bag packaging machine, dry mix mortar bag packaging machine, cement packaging machine, natural stone powder packaging machine, flour powder packaging machine, wheat packaging machine, potato starch packaging machine, air packaging machine, granule bag packaging machine, grain packaging machine, fertilizer bag packaging machine, lubricant filling machine, 200 kg drum filling machine, 216L drum filling machine, 208L drum filling machine, ton barrel filling machine, IBC barrel filling machine, jumbo bag packaging machine, ton bag packaging machine, 30L pail filling machine, 50L pail asphalt filling machine, ATEX barrel filling machine, explosion-proof filling machine, etc.

Company Certificate

Our office and workshop

e777乐彩线路检测Consulting-Design-Procurement-Processing-Production-Installation-Debugging-Training-Maintenance

This is a partial

service for us

in China.

Over 30 years of experience, every time we produce in

Shanghai, our friends can visit our factory at any time.

Brand components

We will ensure that our company's equipment has safety, stability, high efficiency and intelli-gent technology, so as to meet your needs, we can also cooperate with you in selecting in-ternational product brand production and business.

Our service

Complete solution provided

Telephone exchange joint business design plan, you can also visit our company ; we have a good environmental office vehicle,you can visit from time to time.

Duty after death

Our music team has a strong heart, and the customer's suspicions are also the purpose 24 hours of phone cell service and listing to the conversation at any time.

Technology group

e777乐彩线路检测We have a wealth of technical personnel and our technical team has been developing technical skills for over ten years.

Successful collaboration

Our factory in Shanghai. China provides free training for our technical staff.Better guarantee good product safety , our company provides safety, convenience, high efficlency packaging servic.

packge and delivery

e777乐彩线路检测Multiple Transportation way :Express(Fedex/DHL/TNT/EMS/UPS etc),air and shipping for your choose
