IBC filling robot
Guangzhi’s GZ-IBC Robotic Filler: Automate 1,000L IBC filling at 18 units/hour with ±0.1% accuracy. ATEX/UN/FDA compliant. Zero-spill technology.
- Brand：
- Model：

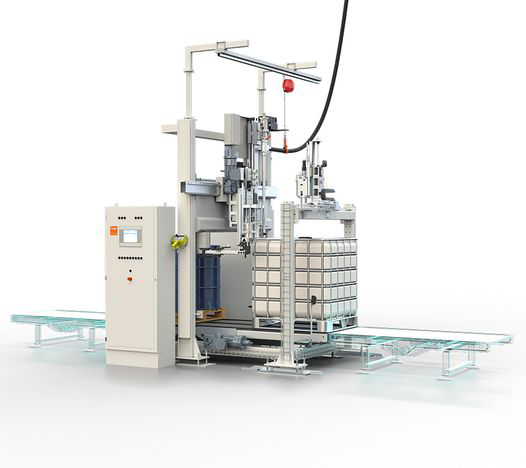

Product Introduction: GZ-IBC Series Robotic IBC Filling System
End-to-End Automation for 1,000L IBC Tote Handling
Shanghai Guangzhi Automation’s GZ-IBC Series revolutionizes bulk liquid handling with AI-guided robotics, achieving ±0.1% gravimetric accuracy and 18 IBCs/hour throughput. Integrating robotic positioning, spill-free filling, and UN-certified stacking, this system eliminates manual labor while ensuring 99.9% operational reliability for hazardous chemicals, food-grade liquids, and pharmaceutical intermediates.
Core Technologies
AI Vision-Guided Robotics
6-axis robot arm with 3D LiDAR scans tote position/orientation (±0.5mm alignment)
e777乐彩线路检测Auto-adjusts for deformed containers and mixed SKUs
Precision Gravimetric Filling
e777乐彩线路检测Two-stage flow control (150 → 30 L/min) with load-cell feedback (±0.1% accuracy)
e777乐彩线路检测Retractable lance with N₂ purging and drip recovery (product loss <0.02%)
Hazardous Material Safety
e777乐彩线路检测ATEX Zone 1 certified: explosion-proof motors, static grounding (<10⁶ Ω)
e777乐彩线路检测Vapor sensors + emergency shutdown
IoT Smart Control
15" HMI with 50+ recipe presets, OEE dashboards, and remote diagnostics via Guangzhi SmartTote OS
Corrosion-Resistant Build
316L stainless steel/PVDF contact parts (FDA/EC1935 compliant)
e777乐彩线路检测IP66 washdown-ready (optional CIP/SIP)
Technical Specifications
| Parameter | Standard Model | Heavy-Chem Option |
|---|---|---|
| Tote Capacity | 1,000L (264 gal) | 1,500L |
| Filling Accuracy | ±0.1% (max 1,500kg) | ±0.15% (max 2,200kg) |
| Throughput | 18 units/hour | 12 units/hour |
| Viscosity Range | 1–200,000 cP | 1–500,000 cP |
| Filling Speed | 30–400 L/min | 20–300 L/min |
| Power Supply | 380V/50Hz, 5.5 kW + 0.8 MPa air | |
| Sealing Integration | Auto twist-lock lid clamp | Flange bolt tightening |
| Safety Compliance | ATEX, UN 4H2, ISO 15848 | ASME BPE, GMP Grade C |
| Footprint (L×W×H) | 5,200 × 3,800 × 4,500 mm |
Industry Applications
Chemical Processing:
e777乐彩线路检测Flammable solvent filling (ATEX Group IIC) with nitrogen blanketing
Static control for powders/resins
Food & Beverage:
e777乐彩线路检测Hygienic syrup/edible oil transfer (3A sanitary design)
Pharmaceuticals:
Sterile intermediate handling (isolator enclosure option)
Paints/Coatings:
e777乐彩线路检测Pigment homogenization during filling
Operational Advantages
| Feature | Benefit |
|---|---|
| Robotic Positioning | 99.8% fill valve alignment; zero spills |
| Dual-Stage Filling | 40% faster cycle time vs. single-stage |
| Auto Lid Handling | Seals totes in 8 sec; eliminates 2 laborers |
| IoT Predictive Maintenance | Reduces downtime by 60% |
| Compliance | Meets ADR/RID/IMDG transport regulations |
Safety Systems
360° Laser Scanning: Halts operation on human intrusion (ISO 13849-1 PLd)
Containment Safeguards:
e777乐彩线路检测Secondary spill tray (500L capacity)
e777乐彩线路检测Vapor detection + exhaust ventilation
e777乐彩线路检测Seismic anchoring for earthquake zones
Upgrade Modules:
e777乐彩线路检测Cryogenic filling (-50°C)
Inert gas purging for pyrophoric materials
