Fully auto filler/capper for 5-30L color pastes. ±0.2% weighing, nitrogen capping & helical mixing. 20 pails/min. FDA/REACH compliant. CIP/SIP ready.

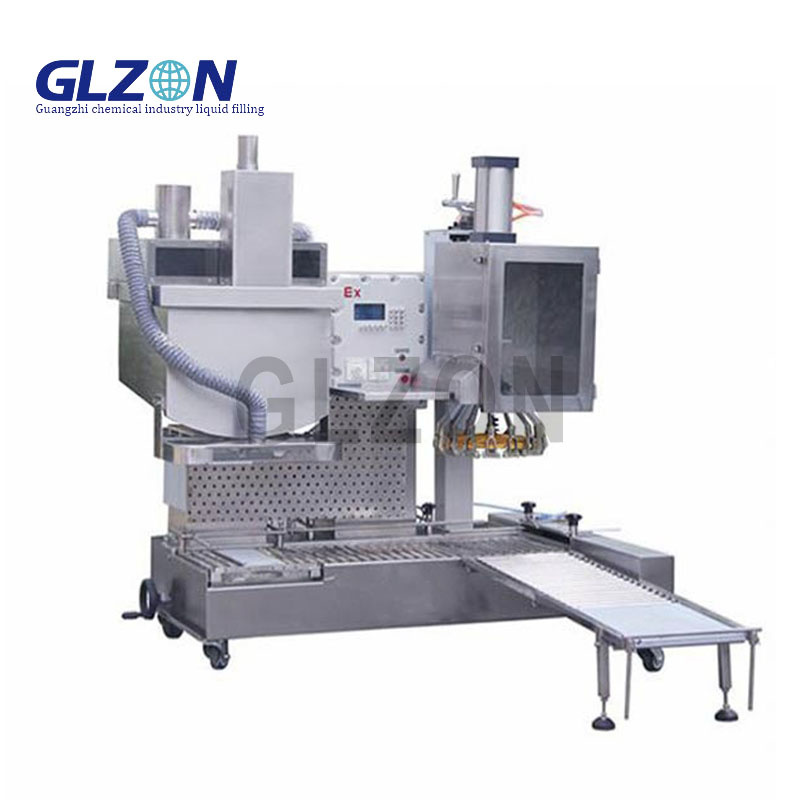

Shanghai Guangzhi Automation’s Integrated Filling & Capping System masters 5-30L color pastes and inks (50,000-200,000 cP) with ±0.2% gravimetric accuracy. Featuring helical anti-settling agitation, nitrogen-flushed capping, and AI-driven viscosity control, it achieves 20 pails/minutee777乐彩线路检测 while eliminating pigment separation, oxidation, and batch variation in paint, ink, and cosmetic manufacturing.
1. Dynamic Settlement Prevention
| System | Technical Advantage |
|---|---|
| Helical Ribbon Mixer | Wall-scraping action (10-30 RPM) |
| Vacuum Degassing | Removes 95% entrapped air |
| Pulsed Filling | Prevents density stratification |
| Real-Time Density Monitoring | ±1% SG adjustment |
2. Oxygen-Free Sealing
Nitrogen Capping Process:
e777乐彩线路检测Purging: O₂ <0.5% pre-capping
Sealing: Torque-controlled (5-50 N·m) with inert gas blanket
Color Preservation:
Prevents oxidation-induced fading
UV-blocking pail options
3. Precision Integrated Weighing
Multi-Cell Load System:
4× OIML R60 Class 0.5 load cells (±0.05%)
Auto-tare for pail weight variations
Viscosity Compensation:
e777乐彩线路检测Adjusts fill speed (0.1-0.5 m/s) for 50-200k cP
| Parameter | Standard Model | ATEX Model |
|---|---|---|
| Filling Range | 5-30L (±0.2%) | 5-30L (±0.3%) |
| Viscosity Range | 50,000-200,000 cP | 50,000-150,000 cP |
| Throughput | 20 pails/min | 18 pails/min |
| Cap Types | Screw lids (Ø80-200mm) | Screw lids (Ø80-180mm) |
| N₂ Consumption | 15 L/min @ 4bar | 12 L/min @ 4bar |
| Power | 380V/50Hz, 7.5kW | 24VDC intrinsic safety |
| CIP/SIP Cycle | <8 min (alkali/acid/steam) | <10 min |
| Footprint (L×W×H) | 3500×1800×2500mm | 3700×1800×2500mm |
| Challenge | Guangzhi Solution |
|---|---|
| Pigment Settling | Bottom-up filling + continuous mixing |
| Skin Formation | Nitrogen barrier during transfer |
| Shear Damage | Low-speed auger (shear <500 s⁻¹) |
| Cross-Contamination | Quick-flush connectors (30s color change) |
10" HMI with Color Cloud
Formula Management:
100+ preset viscosity profiles (e.g., TiO₂, phthalo blue)
e777乐彩线路检测Auto-records colorant batch codes
Real-Time Analytics:
Density deviation alerts
O₂ ppm during capping
Torque consistency mapping
Predictive Maintenance:
e777乐彩线路检测Mixer bearing wear index
e777乐彩线路检测Seal degradation forecasts
Industry 4.0 Integration
e777乐彩线路检测OPC UA to MES/ERP (SAP integration)
Blockchain pigment traceability
e777乐彩线路检测Remote firmware updates
Global Paint Manufacturer Case:
Reduced color drift complaints by 98%
Achieved ±0.15% fill accuracy for 20L TiO₂ paste
ROI in 8 monthse777乐彩线路检测 via waste reduction
Certifications:
e777乐彩线路检测FDA 21 CFR 175.300
e777乐彩线路检测REACH SVHC compliance
CE EN 1672-2
ATEX Zone 22 (option)
Critical Upgrades:
| Module | Function |
|---|---|
| Inline Colorimeter | ΔE≤0.5 color consistency monitoring |
| X-Ray Fill Inspection | Detects pigment agglomerates (≥100μm) |
| Robotic Pail Handling | Auto de-palletizing & lid feeding |
| AR Quality Audit | HoloLens-assisted batch verification |
24/7 Color Sector Support:
Remote diagnostics via IIoT gateway
Critical Spares Dispatch ≤48h:
Helical agitators
Nitrogen valves
e777乐彩线路检测Torque sensors
Color Consistency Optimization:
Viscosity-temp profile tuning
Shear rate validation
APPLICABLE BARREL TYPE
