e777乐彩线路检测Shanghai Guangzhi’s Double Station Drum Filler achieves ±0.1% accuracy for 20-200L drums. Fills oils, paints, ink & pastes at 10-15 drums/hour with ATEX & spill-proof technology.

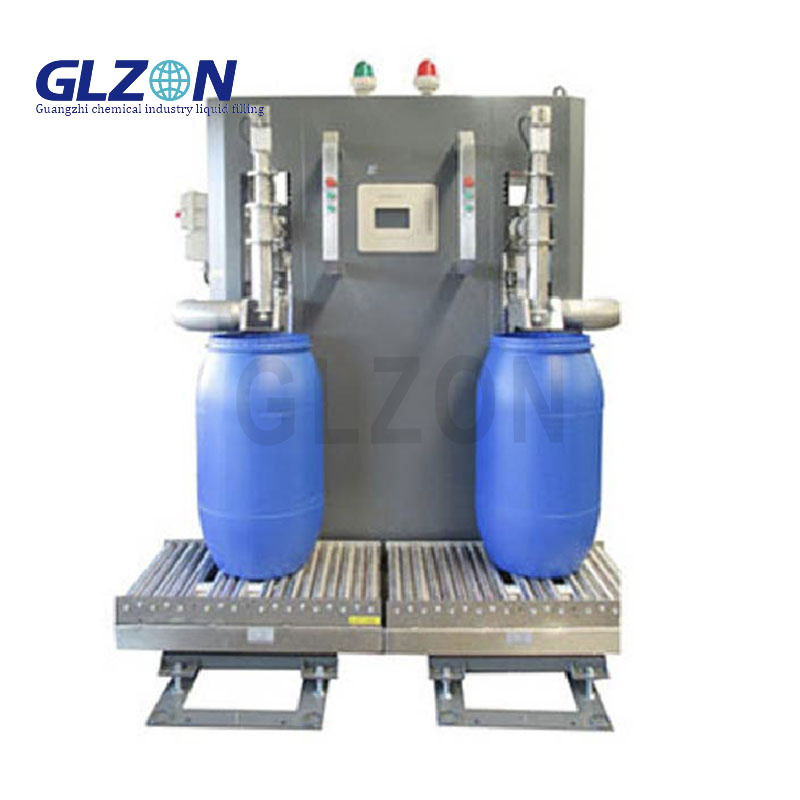

Shanghai Guangzhi Automation’s Double Station Drum Filling Machine delivers synchronized filling for industrial liquids (oil/paint/ink/paste) into 20-200L steel/plastic drums. Featuring servo-driven volumetric control (±0.1% accuracy), ATEX-certified safety, and zero-spill technology, it maximizes throughput while reducing waste by 99%.
1. High-Precision Dual Filling
±0.1% Volumetric Accuracye777乐彩线路检测: Dual servo-coriolis mass flow meters handle viscosity from 1-500,000 cP (inks to greases).
Auto Viscosity Adaptation: Real-time PID adjustment for shear-thinning/thickening fluids.
2. Explosion-Proof Safety (Optional)
ATEX Zone 1/21 Certifiede777乐彩线路检测: Pressurized panels, IP66 motors & non-sparking pneumatics for solvents/combustibles.
Vapor Recovery System: Sealed filling nozzles with nitrogen purge (residual O₂ <0.5%).
3. Zero-Spill Operation
Smart Drum Sealing: Pneumatic cone valves create leak-proof seal before/during/after filling.
Drip Trays & Splash Guards: 316L stainless steel CIP-compliant design.
4. Fully Automated Integration
Dual-Robot Arm Clamping: Auto-aligns drums (Ø290-600mm) on 2 independent stations.
PLC + SCADA Connectivitye777乐彩线路检测: OPC UA/Modbus TCP sync with batching systems & MES.
| Parameter | Standard Model | ATEX Model |
|---|---|---|
| Filling Range | 20-200L | 20-180L |
| Accuracy | ±0.1% of setpoint | ±0.15% |
| Max Viscosity | 500,000 cP | 300,000 cP |
| Filling Speed | 10-15 drums/hour | 8-12 drums/hour |
| Drum Compatibility | Steel/PE/HDEP (290-600mm Ø) | Steel only (290-550mm Ø) |
| Power Supply | 380V/50Hz, 15kVA | 24V DC Intrinsic Safety |
| Pressure Rating | 1.0 MPa | 0.8 MPa |
| Footprint (L×W×H) | 3500×2500×2200mm | 3800×2500×2200mm |
Oil & Lubricants:
Heating jackets for bitumen (0-150°C)
API-compliant custody transfer reports
Paints & Inks:
| Pigment Loading | Shear Rate Control | Cleaning Cycle |
|---|---|---|
| 70% solids | 500-50,000 s⁻¹ | <8 min CIP |
Chemical Pastes:
Teflon-coated augers for silicone/caulk
e777乐彩线路检测Anti-cavitation pumps for filled resins
Automotive Paint Case Study
Challenge: Manual filling caused 3.2% waste & 6 drums/hour throughput
Solutione777乐彩线路检测: Dual-station filler with automatic viscosity compensation
Result:
15 drums/hour (+150%)
0.08% waste
ROI in 7 months
Certifications: CE, ATEX, ASME BPE, SIL 2
Critical Options:
Drum lid placement/threading system
e777乐彩线路检测In-line viscosity/density analyzer (±1%)
Net weight filling mode for foaming liquids
24/7 Smart Support:
Remote diagnostics via IIoT gateway
Critical parts (flow meters/seals) shipped in 72h
