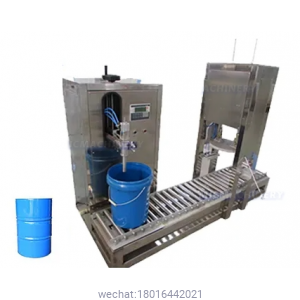

This machine is suitable for filling large volume barrel oil products, such as machine lubricating oil, motor oil, gasoline, engine oil, with high filling efficiency and good effect
The machine main features:
1 The system adopts scale heavy filling, high measurement accuracy, not affected by the material.

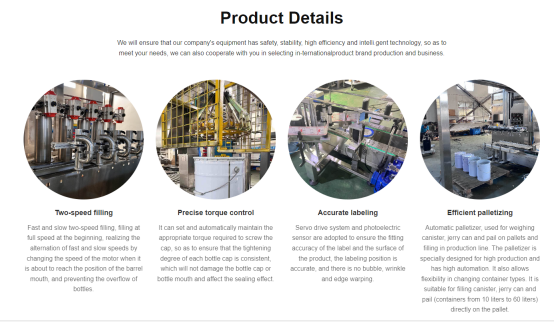

2 The feeding valve composed of fast and slow addition can both improve the filling speed and improve the filling accuracy.
3. Measurement range is large, and the measurement error is less than 20 g / barrel.
e777乐彩线路检测4 The filling head adopts anti-leakage device, and the filled materials have no bubbles and good effect.
Main structure and working principle:

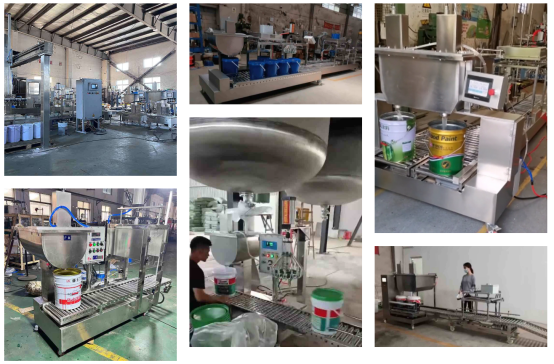

Computer quantitative filling machine has a feeding system, weighing system, rack, pneumatic control, control system, no power roller channel, etc.
Feed mode: continuous stability (feed pump)
The feeding mechanism controls the operation speed of the pump to perform fast and slow feeding.
Filling method: lifting and diving filling
The weighing system consists of a weighing bracket, sensor and weighing platform with an unpowered drum and frame support and filling system.
Pneumatic control system: control of fast and slow feeding valves.
The weighing platform is not subject to additional external forces during use.
The filling method is filling above the liquid level in the bucket, and the filling height is adjustable. When filling, the empty bucket is automatically peeled, the gross weight and the empty bucket weight exceeds the upper limit. The system fails to allow the filling and prevent overflow protection.
