Main configuration:7-inch color touch screen with human-machine interface and convenient operationMettler Toledo weighing sensorImported speed regulating motors and speed controllersHard alumina alloy

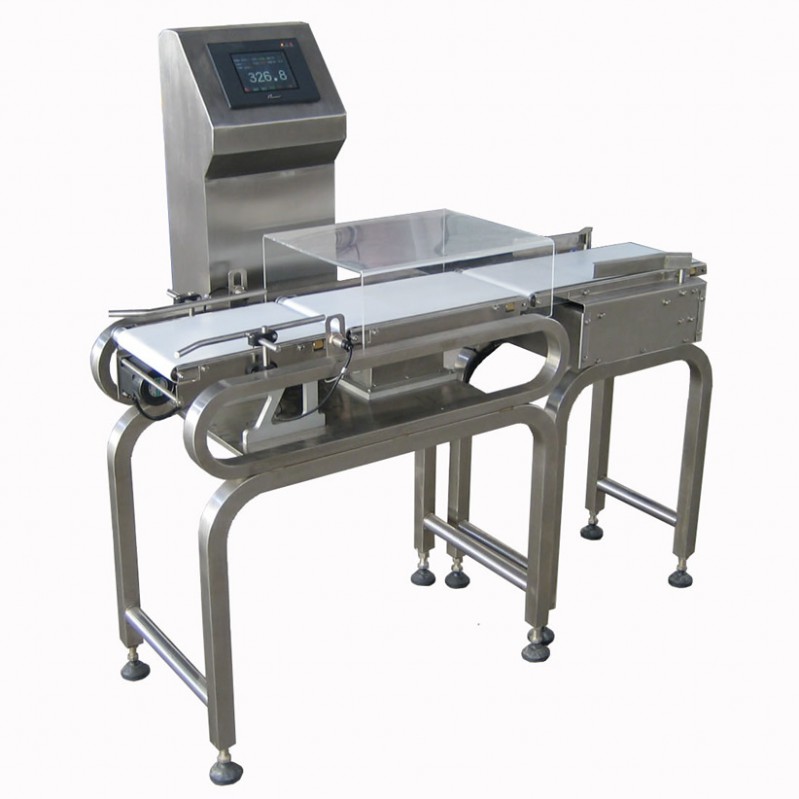

Shanghai Guangzhi Automation’s 5L Series Weight Inspector delivers ±0.01g measurement accuracy for bottles, cans, and pouches (50ml-5L) at 200 packages/minute. Featuring AI-driven anomaly detection, self-diagnosing load cells, and GMP-ready construction (Ra≤0.4μm), it achieves <0.001% false reject rate while ensuring 100% compliance in pharmaceutical, cosmetic, and food operations.
1. Ultra-Precision Metrology
| Technology | Performance |
|---|---|
| MEMS Load Sensors | 0.0005% FS accuracy (OIML R51 Class 0.5) |
| Dynamic Vibration Rejection | ±0.02g stability @ 15Hz vibration |
| Auto-Temperature Compensation | ±0.0003%/°C drift control |
| High-Speed Sampling | 1,000Hz data acquisition rate |
2. AI-Powered Quality Intelligence
Deep Learning Defect Detection:
Identifies underfills/overfills, missing caps, label defects
e777乐彩线路检测Self-learns from 1,000+ defect samples (≤0.5s inference)
Closed-Loop Process Control:
| Parameter | Response Time |
|---|---|
| Filler Adjustment | 20ms via EtherCAT |
| Reject Activation | ±0.5ms pneumatic/mechanical |
3. Hygienic Industrial Design
GMP/NSF Compliance:
Electropolished 316L SS (Ra≤0.4μm)
Radiused corners + 3° drainage slope
Tool-Free Adaptability:
Belt width: 150-400mm (5s adjustment)
Container height: 50-300mm (auto-sensing)
| Model | Standard | Pharma Grade | ATEX Zone 22 |
|---|---|---|---|
| Capacity | 5g-5kg (±0.01g) | 1g-5kg (±0.005g) | 10g-5kg (±0.02g) |
| Speed | 200 ppm | 180 ppm | 150 ppm |
| Accuracy | ±0.01g (min) | ±0.005g (min) | ±0.02g (min) |
| Reject Precision | ±0.8ms | ±0.3ms | ±1ms |
| Data Interface | EtherCAT, OPC UA | 21 CFR Part 11 | Modbus TCP Ex ia |
| Power | 100-240VAC, 0.6kW | 100-240VAC, 0.6kW | 24VDC intrinsic safety |
| Certifications | OIML R51, CE | FDA, EU GMP Annex 11 | ATEX, IECEx |
| Footprint (L×W×H) | 1800×700×1100mm | 2000×700×1100mm | 2100×700×1100mm |
Pharmaceuticals
Aseptic wipe-down design
e777乐彩线路检测Electronic batch records (EBR) with blockchain sealing
0.005g accuracy for vaccine vials
Cosmetics & Chemicals
Solvent-resistant conveyor belts
Static control (<10⁶ Ω surface resistance)
e777乐彩线路检测Corrosion-proof enclosure (IP66)
Food & Beverage
USDA/EC 1935 compliant materials
Washdown survival (IP69K, 80°C/80 bar)
Allergen control mode (auto-CIP purge)
10" HMI with SPC Dashboard
Real-Time Analytics:
e777乐彩线路检测Cp/Cpk trend monitoring
Weight distribution histogram
Reject cause Pareto chart
Predictive Alerts:
Belt wear forecasting
e777乐彩线路检测Sensor drift detection
Industry 4.0 Integration
OPC UA to MES/SCADA
Blockchain Traceability:
e777乐彩线路检测Weight data → batch number → ERP
Digital twin for virtual FAT
Swiss Pharma Contract Manufacturer:
Reduced false rejects by 98% via AI learning
Achieved ±0.004g consistency for 100ml serum vials
ROI in 5 months via reduced giveaway
Certifications:
e777乐彩线路检测OIML R51 Class 0.5
FDA 21 CFR Part 11
e777乐彩线路检测ATEX 2014/34/EU (Zone 22)
ISO 9001:2015
Critical Upgrades:
| Module | Function |
|---|---|
| X-Ray Inspection | Combines weight/density/contaminant check |
| Laser Marking | Direct container engraving for traceability |
| AR Calibration | HoloLens-guided weight verification |
| Carbon Footprint Tracker | Energy consumption analytics |
24/7 Global Metrology Support:
Remote diagnostics via VPN-secured IIoT
Critical Spares Dispatch ≤48h:
e777乐彩线路检测MEMS load sensors
e777乐彩线路检测FDA-grade conveyor belts
AI inference modules
On-Site Validation:
e777乐彩线路检测NIST-traceable calibration
GMP IQ/OQ/PQ documentation
