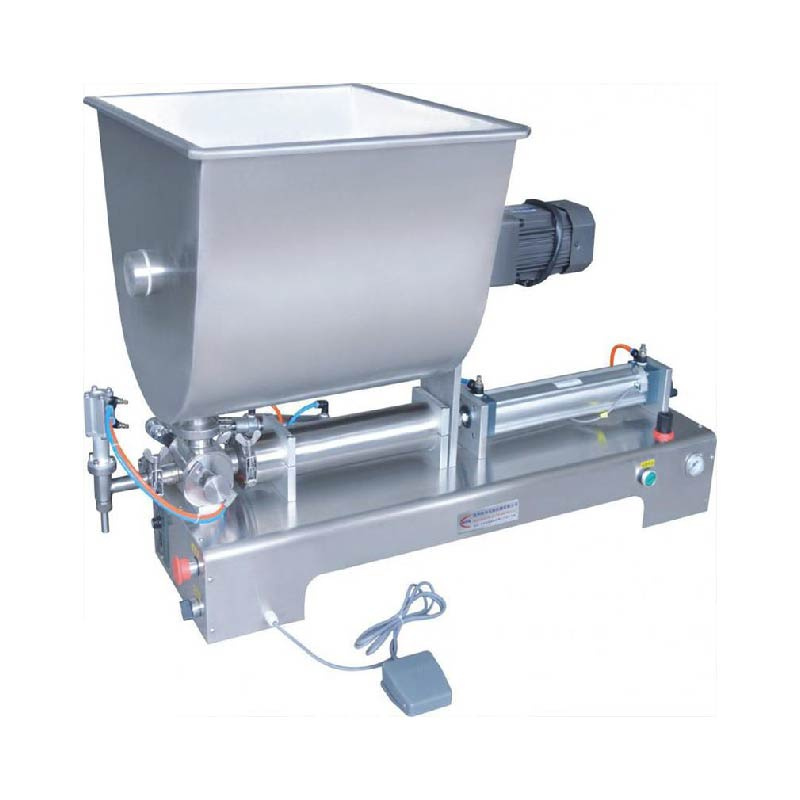

Tomato sauce filling machine

Tomato sauce filling machine

e777乐彩线路检测A piston filling machine is a type of filling machine that fills high concentration fluids. It uses a three-way principle of a piston and a rotary valve driven by a cylinder to extract and dispense high concentration materials. The stroke of the cylinder is controlled by a magnetic spring switch to adjust the filling amount.

e777乐彩线路检测1. Applicable to industries such as food, medicine, daily chemical, pesticide, etc

2. This device has the characteristics of compact and beautiful design, simple and easy to understand operation, and high accuracy.

e777乐彩线路检测3. This machine adopts a special three-way filling valve, which achieves material filling through the reciprocating motion of the cylinder, making it an ideal alternative equipment for manual operations.

4. The material contact part is made of 316L stainless steel material, which meets GMP requirements. For highly corrosive liquids, the contact part of the material is made of polytetrafluoroethylene material to ensure the long-term stable operation of the equipment.

e777乐彩线路检测5. The filling volume and filling speed can be adjusted arbitrarily, with high filling accuracy.

6. The filling head adopts anti drip, anti drawing, and lifting filling devices.

1. Number of filling heads: 1-6 heads

2. Filling capacity: 40ml-5000ml

e777乐彩线路检测3. Power supply: 220V/50HZ 0.1Kw

4. Filling error: ≤ ± 1%

5. Production speed: ≤ 2500 bottles/hour (calculated based on 100ml of water as the medium)

6. Boundary dimension: 1000mm × 500mm × 1200mm

e777乐彩线路检测7. Machine weight: 100 kg

e777乐彩线路检测8. Gas source requirements: A stable 0.55MPa-0.65Mpa gas source

e777乐彩线路检测Suitable for various industries such as daily chemical, pharmaceutical, food, pesticide, etc
