Precision ∙ Speed ∙ Zero Spills
For Chemicals, Paints, Lubricants & Food-Grade Liquids

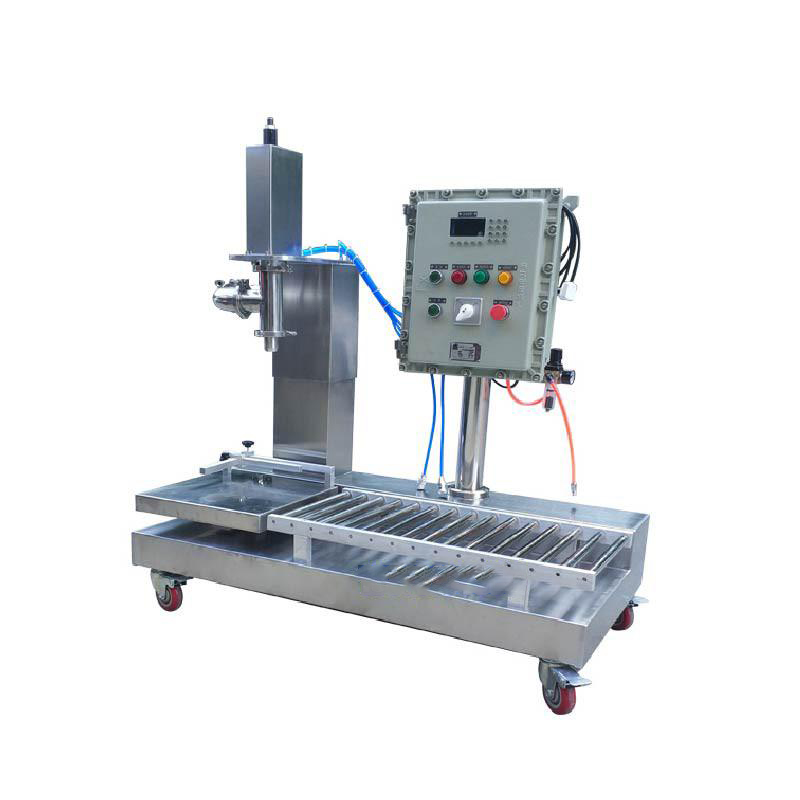

Shanghai Guangzhi Automation’s GZ-B25 Series delivers laboratory-grade accuracy (±0.2%) for filling 25L buckets with aggressive solvents, viscous oils, or sensitive food products. Engineered for 24/7 operation, this semi-automatic system eliminates drips, reduces waste by 18%, and fills 30 buckets/hour – cutting labor costs while ensuring ATEX safety and USDA compliance.
✅ Drip-Free Nozzle
PTFE-coated retractable lance with auto-purge (<0.05mL residue).
✅ Multi-Viscosity Handling
1–200,000 cP (thin solvents to grease-grade lubricants).
✅ ATEX Zone 2/22 Option
Explosion-proof for flammable liquids (Ex nA IIB T4).
✅ Quick-Change Tooling
Switch between open-head/tight-head buckets in <60 seconds.
✅ USDA & FDA Compliance
e777乐彩线路检测3-A sanitary design with EHEDG-certified surfaces.
*Table: GZ-B25 Performance Metrics*
| Parameter | Standard Model | ATEX Model | Food-Grade Model |
|---|---|---|---|
| Accuracy | ±0.2% (gravimetric) | ±0.3% | ±0.2% |
| Throughput | 30 buckets/hour | 25 buckets/hour | 28 buckets/hour |
| Viscosity Range | 1–50,000 cP | 1–10,000 cP | 1–20,000 cP |
| Material Contact | 316L SS / EPDM | 316L SS / FFKM | 316L SS / PTFE / EPDM |
| Power | 220V/50Hz, 1.8 kW | 400V/50Hz, 2.2 kW | 220V/50Hz, 1.8 kW |
| Fill Head | Single lance | Static-dissipative lance | CIP-ready lance |
| Safety | Foot pedal + E-stop | ATEX Ex nA IIB T4 | GMP-compliant |
| Dimensions (L×W×H) | 1,200 × 900 × 1,800 mm | 1,300 × 900 × 1,800 mm | 1,200 × 900 × 1,800 mm |
