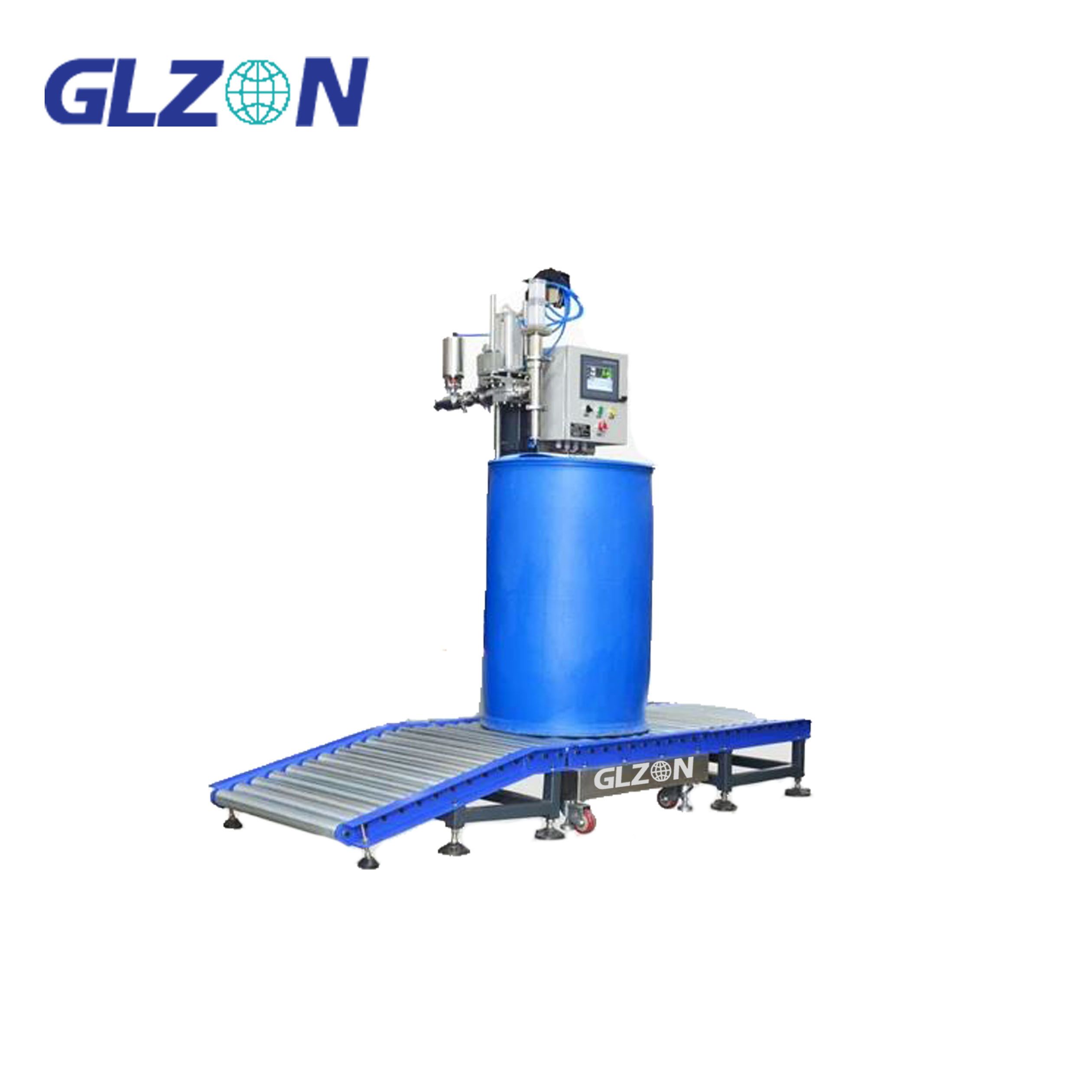

Oil Drum Filling Machine

Oil Drum Filling Machine

Basic parameters

Maximum weighing capacity: 400kg

e777乐彩线路检测Minimum sensitivity: 0.1kg

e777乐彩线路检测Filling error: less than ± 0.1%

Filling speed: approximately 40-60 barrels per hour (depending on feed flow rate)

e777乐彩线路检测Explosion proof level: EXdiaIIBT4

e777乐彩线路检测Control mode: 2nd gear control

e777乐彩线路检测Filling method: plug-in, above the liquid level

e777乐彩线路检测Scale platform size: 700 × 700mm

Empty barrel raceway: 700mm × 1000mm

Heavy barrel raceway: 700mm × 1000mm

e777乐彩线路检测Gun head pipeline: SUS304 stainless steel and PTFE

Structural material: SUS304 stainless steel

Drum material: SUS304 stainless steel

e777乐彩线路检测Pipeline pressure: 0.2-0.6 MPa (depending on material properties).

Material interface: DN40 quick installation clamp (water nozzle), can be provided according to user interface standards

Gas source interface: The user provides an 8mm gas pipe connector for quick connector connection

e777乐彩线路检测■ Power supply: AC220/50Hz (provided by the user to one side of the machine)

e777乐彩线路检测■ Gas source used: 0.4-0.8Mpa (user provided to machine side)

e777乐彩线路检测Usage temperature: -10 ℃ -50 ℃

Basic conditions: A horizontal and sturdy concrete ground, with a concrete thickness greater than 10cm.

6. Workflow

e777乐彩线路检测A. The operator moves the empty barrel to the weighing platform, so that the filling gun head is directly above the barrel mouth;

B. The operator presses the [Start] button;

C. The filling head is automatically inserted into the barrel and the weight of the container is checked to be qualified. The tare weight is automatically removed, and the ball valve and the bottom valve of the gun head are opened for quick filling. When the weight reaches a small material value, the filling speed decreases. When the weight reaches the target amount and reduces the advance amount, the two valves are fully closed. The filling head automatically lifts the gun out of the barrel, and the anti drip tray receives the liquid. Error detection and display are performed;

D. The operator moves the heavy bucket out of the weighing platform and turns the lid. A filling process is completed;

e777乐彩线路检测E. Repeat steps A-D for continuous filling.
