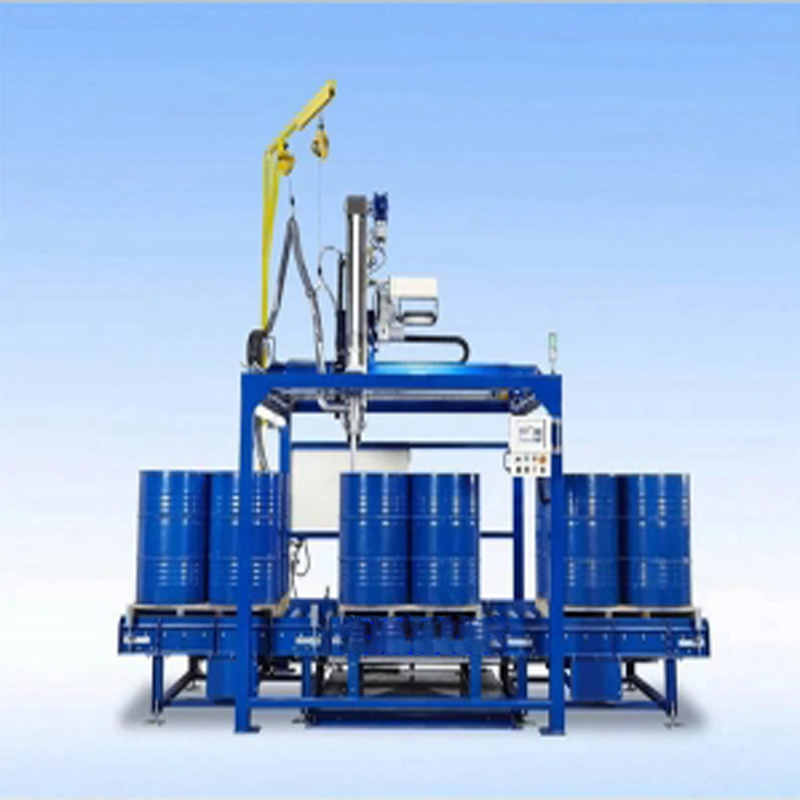

Drum Filling Machine Underwater

1. Typical applications

e777乐彩线路检测It is suitable for quantitative filling of 200L foam free liquid in chemical, food and pharmaceutical industries.

e777乐彩线路检测2. System Overview

e777乐彩线路检测GZM-200L explosion-proof liquid upper type liquid quantitative filling scale adopts liquid surface filling method, which is suitable for filling a variety of foam free liquid materials. The uniquely designed filling head device is easy to operate, with fast and accurate filling; And ensure to the greatest extent possible the leakage of residual liquid upon completion of infusion. When operating, the operator only needs to simply align the barrel mouth directly below the filling head, press the [Start] button on the handle, and the filling head will automatically insert into the barrel, and the empty barrel will be automatically peeled. Then open the filling valve and accurately fill at two speeds; After the filling is completed, the filling head automatically lifts to the outside of the bucket, the drip tray automatically connects to the bottom of the spray gun, and the bucket is manually pushed out of the weighing table by rotating the cover to complete the process.

e777乐彩线路检测3. System features and functions

e777乐彩线路检测The entire system is manufactured according to explosion-proof standards, with an explosion-proof level of EXdiaIIBT4

e777乐彩线路检测The control system is manufactured using high-end electrical components such as Mitsubishi PLC programmable controllers from Japan, with reliable performance;

The filling gun is our company's proprietary design, which allows for quick disassembly and easy maintenance with bare hands;

The sealing and soft connection parts are made of Teflon, which is solvent resistant, acid and alkali resistant, and has a long service life;

The system adopts a two-stage adjustable filling method for large and small materials, which improves accuracy and production capacity;

e777乐彩线路检测■ Equipped with automatic protection function for the top bucket, used to automatically lift the filling gun when it is not inserted into the bucket and not perform filling;

Unique anti drip device to prevent materials from dripping onto barrels and weighing platforms, affecting packaging and rollers;

Choose two filling modes, net weight and gross weight, to meet the different filling needs of users;

e777乐彩线路检测Free setting of target quantity, suitable for quantitative filling in various weight ranges;

Dual window display dedicated filling control instrument, which can display information such as target quantity, filling quantity, number of barrels, cumulative quantity, etc;

The filling head height can be manually adjusted, suitable for packaging drums of different heights;

e777乐彩线路检测Equipped with automatic identification of the tare weight range of empty barrels and the function of filling without barrels;

Equipped with automatic detection of filling target quantity exceeding the tolerance function, and can freely activate the automatic drop correction function;

The controller is equipped with manual buttons and emergency stop buttons for all actions, for use in special situations;

The controller can store 30 sets of filling value parameters, which can only be called when in use;

Equipped with self fault diagnosis, interface testing, digital calibration, anti vibration setting, and upper computer communication functions;

Adopting one click operation: start - gun head descent - automatic peeling - filling - completion of gun lifting - leak detection.

Basic parameters

e777乐彩线路检测Maximum weighing capacity: 400kg

e777乐彩线路检测Minimum sensitivity: 0.1kg

e777乐彩线路检测Filling error: less than ± 0.1%

Filling speed: approximately 40-60 barrels per hour (depending on feed flow rate)

Explosion proof level: EXdiaIIBT4

Control mode: 2nd gear control

e777乐彩线路检测Filling method: plug-in, above the liquid level

e777乐彩线路检测Scale platform size: 700 × 700mm

Empty barrel raceway: 700mm × 1000mm

e777乐彩线路检测Heavy barrel raceway: 700mm × 1000mm

Gun head pipeline: SUS304 stainless steel and PTFE

e777乐彩线路检测Structural material: SUS304 stainless steel

e777乐彩线路检测Drum material: SUS304 stainless steel

Pipeline pressure: 0.2-0.6 MPa (depending on material properties).

Material interface: DN40 quick installation clamp (water nozzle), can be provided according to user interface standards

e777乐彩线路检测Gas source interface: The user provides an 8mm gas pipe connector for quick connector connection

e777乐彩线路检测■ Power supply: AC220/50Hz (provided by the user to one side of the machine)

■ Gas source used: 0.4-0.8Mpa (user provided to machine side)

Usage temperature: -10 ℃ -50 ℃

Basic conditions: A horizontal and sturdy concrete ground, with a concrete thickness greater than 10cm.

6. Workflow

A. The operator moves the empty barrel to the weighing platform, so that the filling gun head is directly above the barrel mouth;

B. The operator presses the [Start] button;

C. The filling head is automatically inserted into the barrel and the weight of the container is checked to be qualified. The tare weight is automatically removed, and the ball valve and the bottom valve of the gun head are opened for quick filling. When the weight reaches a small material value, the filling speed decreases. When the weight reaches the target amount and reduces the advance amount, the two valves are fully closed. The filling head automatically lifts the gun out of the barrel, and the anti drip tray receives the liquid. Error detection and display are performed;

e777乐彩线路检测D. The operator moves the heavy bucket out of the weighing platform and turns the lid. A filling process is completed;

e777乐彩线路检测E. Repeat steps A-D for continuous filling.
