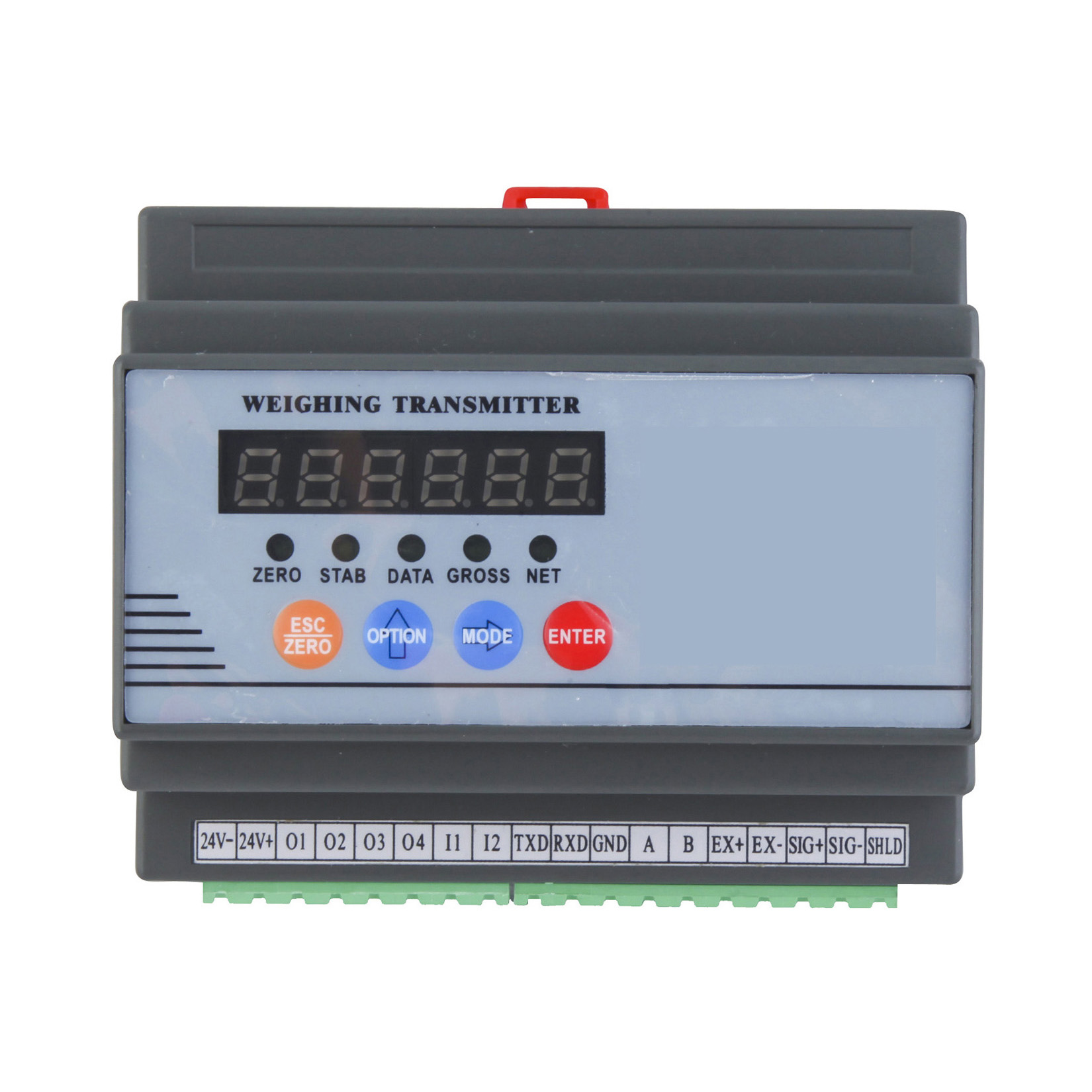

GM8802S-F Weighing transmitter with 4 set points
GM8802S-F weighing indicators are specially designed for weight transmitting in industrial fields, which have features of small volume, plenty communicating commands, stable performance, easy operation and practicability, so they are widely applied to concrete and bitumen mixing equipment, commodity industry, chemical industry and feed, etc.
Applicable to all kinds of resistance strain gauge bridge load cell
Front panel numerical calibration
Multilevel of digital filter
Automatic zero –tracking
Automatically zero when powered on
Serial communication interface:RS232 and RS485
INIDICATOR POWER | |
Power Supply | DC 24V ± 5% |
Power Consume | About 4W |
A/D CONVERTER | |
Type | 24-bit Delta-Sigma |
Analogue input range | 0.02~10mV(load cell 2mV/V) |
0.02~15mV(load cell 3mV/V) | |
Zero adjustment range | 0.02~8mV(load cell 2mV/V) |
0.02~12mV(load cell 3mV/V) | |
Linearity | <0.01%FS |
Gain Drifting | 10PPM/℃ |
Minimum Sensitivity | 0.1 ? V/d |
Conversion Rate | 120/480/s |
Maximum display precision | 1/100,000
|
CALIBRATION & WEIGHING FUNCTIONS | |
Calibration | By test weights or by millivoltage calibration |
Digital Filter | Two Layer FIR filter with 9 selectable levels |
Weighing Functions | zero, zero tracking, auto-zero at power |
DISPLAY | |
Display | 6 digits, 7 segments, LED green |
Keyboard | 4 beep keys |
Status Indicator | ZERO, STAB, DATA, GROSS, NET |
ENVIORNMENTAL | |
Operating Temperature | -10℃ to 40℃ |
Storage Temperature | -25℃ to 70℃ |
Relative Humidity | 90% R.H without dew |
IP Level | IP 20 |
LOAD CELLS | |
Excitation | DC5V 200mA(MAX) |
Load Cells | Drives 8pcs load cells 350Ω |
MECHANICAL DATA | |
Dimensions & Weight | 107×87.5×58.7mm (L×W×H) weighs approx.300g |
Standard Mounting | DIN Rail |
Certification | CE |
Enclosure | Plastic |
DIGITAL INPUT | |
Input Number | 2 |
Input Meaning | (2 Self-defined meanings) Zero, Zero subtraction. |
DIGITAL OUTPUT | |
Output Number | 4 |
Output Meaning | (4 Self-defined meanings) Upper limit, Middle limit, Lower limit and lowest limit. |
INSTRUMENTS WITH DATA TRANSMISSION | |
Serial Interface | RS232 / RS485 |
Communication Protocols | rS / rE / Modbus(bus) / EASy / SP1 / tt / rdP. |
