CAS Pancake LSB 20T load cell
CAS load cell, LSB pancake tank scale load cell, truck scale load cell model: LSB-20
⊙FEATURES
High output(4mV/V)
Low profile design
Integrated ball loading construction
⊙OPTIONS
Without accessory
⊙Material
Nickel plated steel
⊙Cable
Braided shield 4-wire round cable
with Urethane-jacket
| Max. capacity | tf | 20 | |
| Rated output Zoro balance | mV/ V mV/ V | 4.0 ± 0.01 0 ± 0.04 | |
| Combined error Repeatability Creep for 30min. Temperature effect on Zero Value Output value | % % % %/ 10℃ %/ 10℃ | 0.03 0.02 0.03 0.03 0.03 | |
| Excitation Recommended Maximum Resistance Input Output Insulation | V V Ω Ω MΩ | 10 15 420 ± 30 350 ± 3.5 ＞2,000 | |
| Compensated temperature range Operating temperature range | ℃ ℃ | -10 to +40 -50 to +80 | |

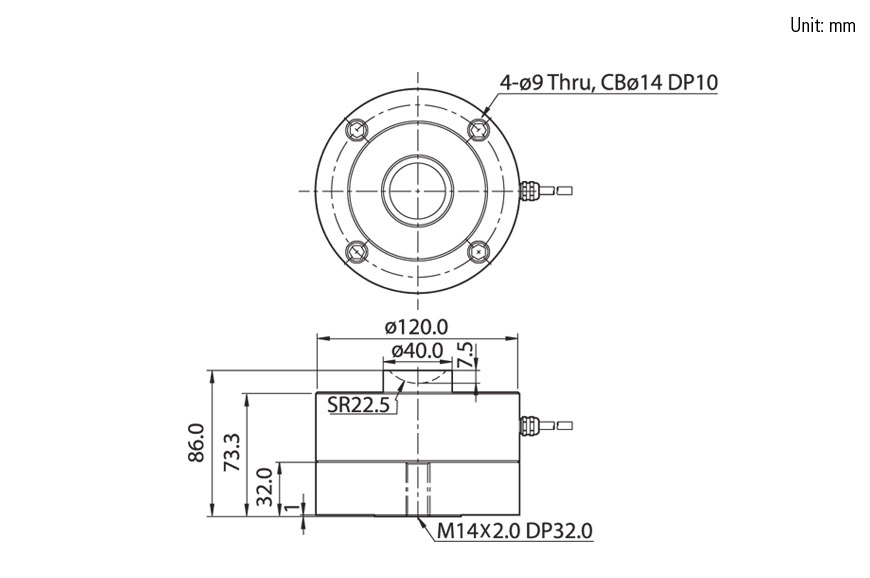

![LSB[1].jpg](../upload/201704/1491805536471654.jpg "1491805536471654.jpg")
