Shanghai Guangzhi’s rocker arm filler handles 200-1000L containers with ±0.2% accuracy. Vapor recovery, ATEX option & corrosion-proof construction. Ideal for oils/chemicals.

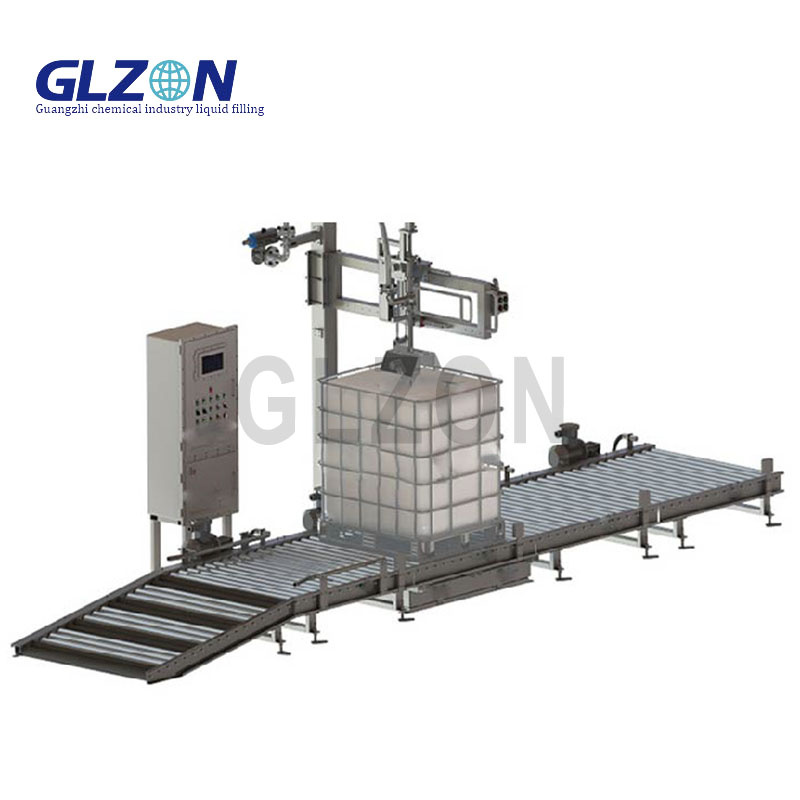

Shanghai Guangzhi Automation’s Rocker Arm Filler revolutionizes mid-volume liquid handling – delivering ±0.2% gravimetric accuracy for 200-1000L drums/IBCs of oils, solvents, and acids. Featuring a 360° rotating arm with height-adjustable nozzle, closed-loop vapor recovery, and Hastelloy C276 fluid path, it enables safe one-person operatione777乐彩线路检测 while eliminating spills and emissions in harsh industrial environments.
1. Intelligent Rocker Arm System
| Feature | Technical Advantage |
|---|---|
| Multi-Axis Rotation | 340° horizontal + 120° vertical sweep |
| Counterbalance Assist | Effortless nozzle positioning (≤10N force) |
| Quick-Release Nozzles | Tool-free change <30s (50-150mm Ø) |
| Ground Verification | Auto-lock if resistance >10Ω |
2. Hazard-Contained Filling
Dual-Seal Vapor Control:
Floating piston + nitrogen blanket (O₂<0.5%)
≥99.7% capture efficiency (EPA Method 21)
Zero-Drip System:
e777乐彩线路检测PTFE-coated needle valves
e777乐彩线路检测Air knife cut-off (residual ≤0.1ml)
3. Extreme Environment Resilience
Material Options:
Hastelloy C276e777乐彩线路检测: HCl/H₂SO₄ up to 50%
PTFE-Lined: Ketones/chlorinated solvents
316L SS: Food-grade oils
ATEX Zone 1 Kit:
Ex d IIC T4 pressurized control
e777乐彩线路检测Intrinsically safe sensors
| Parameter | 200L Drum Model | 1000L IBC Model |
|---|---|---|
| Filling Range | 50-200L (±0.2%) | 200-1000L (±0.3%) |
| Flow Rate | 40 L/min | 100 L/min |
| Viscosity Range | 1-100,000 cP | 1-50,000 cP |
| Container Height | 500-1000mm | 800-1500mm |
| Arm Reach | 1500mm | 2000mm |
| Power | 220V/50Hz, 2.2kW | 380V/50Hz, 4.5kW |
| Vapor Recovery | ≥99.5% | ≥99.7% |
| Footprint (L×W×H) | 1800×1200×2200mm | 2500×1500×2800mm |
| Liquid Type | Optimized Configuration |
|---|---|
| Lubricants (ISO VG 460) | Heated jacket (60°C) + anti-foam |
| 37% Hydrochloric Acid | Electro-polished Hastelloy C22 |
| Edible Oils | 316L SS + USDA seals |
| Acetone | ATEX Ex ia + nitrogen inerting |
Ergonomic Workflow
Single-Hand Control:
e777乐彩线路检测Joystick nozzle positioning
e777乐彩线路检测Foot pedal start/stop
Smart HMI Features:
e777乐彩线路检测Fill volume presets (20 recipes)
Real-time weight display
e777乐彩线路检测Vapor recovery efficiency
Safety Ecosystem
Emergency stop within 0.5s
Ground fault interlock
Splash guard visor
German Chemical Distributor Case:
Challenge: Xylene filling spills causing 5% loss + VOC violations
Solutione777乐彩线路检测: ATEX rocker arm filler with vapor recovery
Results:
▶ Zero spills in 10,000+ fills
▶ VOC emissions <10ppm
▶ ROI in 8 months
Certifications:
e777乐彩线路检测ATEX 2014/34/EU (Zone 1)
e777乐彩线路检测CE PED 2014/68/EU
FDA 21 CFR 177.2600
e777乐彩线路检测ISO 9001:2015
Critical Options:
| Module | Function |
|---|---|
| CIP System | Acid/alkali wash cycles |
| Inline Viscometer | Real-time viscosity compensation |
| AR Maintenance Guide | HoloLens-assisted repairs |
| Blockchain Batch Log | Immutable fill records |
24/7 Hazardous Response:
Remote diagnostics via IIoT
Global Spares Network:
e777乐彩线路检测Hastelloy nozzles
e777乐彩线路检测Vapor membranes
Rotational encoders
Delivery ≤72h from Shanghai/Houston/Rotterdam hubs

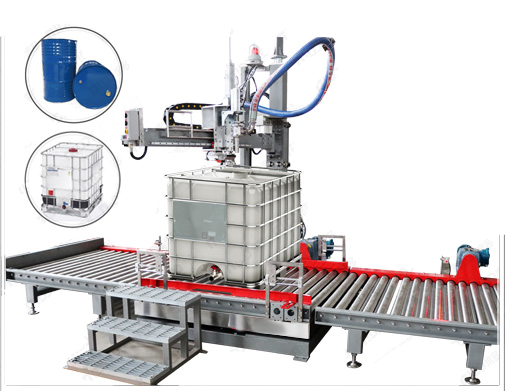

APPLICABLE BARREL TYPE
