Precision IBC filler for 1000L totes with ±0.1% weighing accuracy. ATEX option, corrosion-proof construction & multi-chemical compatibility. 20 fills/hour.

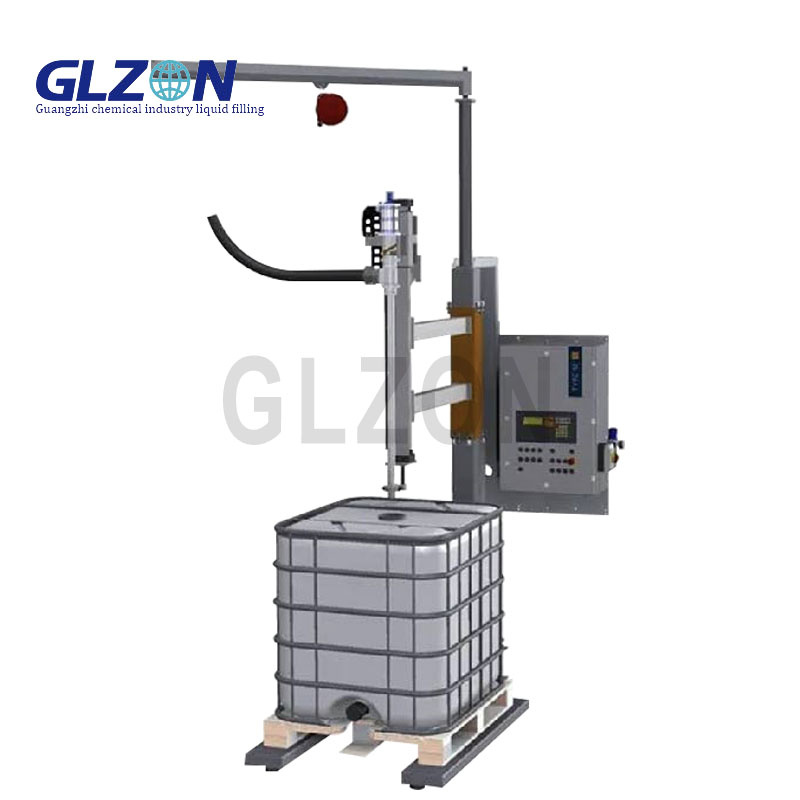

Shanghai Guangzhi Automation’s 1000L IBC Weighing Filler delivers ±0.1% gravimetric accuracy for water, fertilizers, and pesticides in 1000L IBC totes. Engineered with material-specific flow paths, vapor recovery systems, and ATEX Zone 1 compliance, it achieves 20 fills/houre777乐彩线路检测 while preventing cross-contamination, crystallization, and hazardous emissions.
1. Smart Weighing & Flow Control
| Technology | Performance |
|---|---|
| Load Cell System | OIML R60 Class III (±0.1% accuracy) |
| Adaptive Flow Control | 50-500 L/min adjustable flow |
| Viscosity Compensation | 1-50,000 cP range |
| Auto Tare Function | ±0.05kg container weight deduction |
2. Material-Specific Engineering
| Medium | Guangzhi Solution |
|---|---|
| Water | Low-cost SS304 flow path |
| Fertilizer | Heated jackets (40°C) anti-crystallization |
| Pesticide | Hastelloy C276 + PTFE seals (resists organophosphates) |
| Corrosive Acids | Electro-polished 316L + vapor recovery |
3. Hazard Defense Ecosystem
ATEX Zone 1 Option:
Ex d IIC T4 pressurized cabinets
e777乐彩线路检测Intrinsically safe sensors (Ex ia)
Vapor Containment:
Dual-seal filling head + nitrogen blanket
≥99% vapor capture (EPA Method 21)
Emergency Systems:
Spill containment tray (500L capacity)
Auto-shutoff on leak detection
| Parameter | Water Model | Chemical Model |
|---|---|---|
| Filling Range | 500-1000L (±0.1%) | 500-1000L (±0.15%) |
| Filling Speed | 25 fills/hour | 20 fills/hour |
| Max Viscosity | 1,000 cP | 50,000 cP |
| Material Contact | SS304 | Hastelloy C276/PTFE |
| Power | 380V/50Hz, 3.5kW | 380V/50Hz, 4.8kW |
| Air Consumption | 100 L/min @ 0.6MPa | 120 L/min @ 0.6MPa |
| Accuracy | ±0.1% of setpoint | ±0.15% of setpoint |
| Footprint (L×W×H) | 3500×2500×3200mm | 3500×2500×3200mm |
Fertilizer Filling
Anti-Salting System:
Rinsing nozzles post-fill
e777乐彩线路检测Vibrating screen for crystal prevention
pH Monitoring:
Real-time acidity alerts
Pesticide Packaging
Decontamination Cycle:
Solvent flush + steam sterilization
Static Control:
Conductive flooring (<10⁶ Ω)
Water Filling
High-Speed Mode:
e777乐彩线路检测800 L/min flow rate
Low-Cost Configuration:
Polypropylene components
10" HMI with Chemical Database
Pre-Set Recipes:
e777乐彩线路检测50+ chemical profiles (e.g., glyphosate, urea solution)
e777乐彩线路检测Auto-adjusts viscosity/temperature parameters
Real-Time Analytics:
OEE dashboard (uptime/fill accuracy)
e777乐彩线路检测Vapor recovery efficiency
e777乐彩线路检测Predictive maintenance alerts
Blockchain Traceability:
Batch records compliant with REACH/CLP
Industry 4.0 Integration
OPC UA connectivity to SCADA/MES
Remote calibration via VPN
Digital twin for fill simulation
German Agrochemical Plant:
Reduced pesticide filling errors from ±1.5% to ±0.12%
Eliminated 100% vapor emissions
ROI in 8 months via reduced waste & fines
Certifications:
e777乐彩线路检测ATEX 2014/34/EU (Zone 1)
OIML R60 Class III
CE PED 2014/68/EU
ISO 9001:2015
Critical Options:
| Module | Function |
|---|---|
| Inline Density Meter | Real-time SG adjustment (±0.001) |
| X-Ray Fill Check | Void/contaminant detection |
| Robotic Tote Handling | Auto-load/unload integration |
| AR Maintenance Guide | HoloLens-assisted seal replacement |
24/7 Chemical Sector Support:
Remote diagnostics via IIoT gateway
Critical Spares Dispatch ≤48h:
Hastelloy filling nozzles
Load cells
Vapor membranes
On-Site Validation:
e777乐彩线路检测Weights & Measures certification
Leak testing (ISO 15848-1)
APPLICABLE BARREL TYPE
